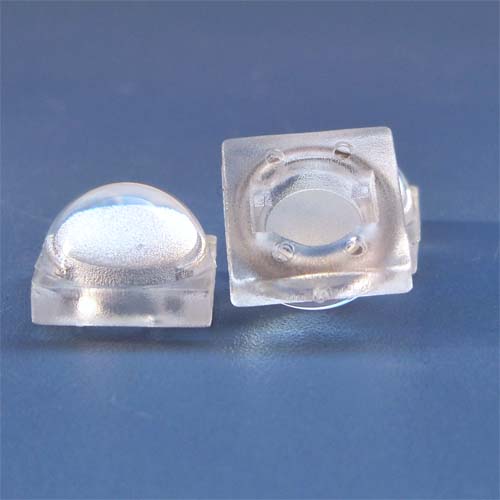

45degree Luxeon|Samsung Mid-Power,OSRAM,SMD 5630|5730 Led lens(HX-9.5-45M)

• Model:HX-9.5-45M
• Dimensions：9.5*9.5mm H6.3mm
• Transmittance：93%
• For LED：SMD 5630|5730
• FOV：FWHM 45deg
• PDF：Led Lenses-HX-SERIES-LENS.pdf
• PDF link：Download
• Release Date:2015-01-26
• Visits:

Product Description

Part No.	HX-9.5-45M
Size	9.5 x 9.5mm H 6.30mm
Materials	Lens：PC Holder:without
Transmittance	95%
Surface Treatment	Frosted(matte) surface
Beam Angle	45 degree (FWHM)
Holder Color	without
For LEDs	Luxeon Mid-power 5630 ; Osram 5630 ,5730; Samsung Mid-power 5630; SMD 5630 ,5730 ;
Fixing Method	Glue (Optional); Tape (Optional)
RoHS/SGS-Compliant	Yes
Purchase	info@opticsledlens.com
Technical Information
