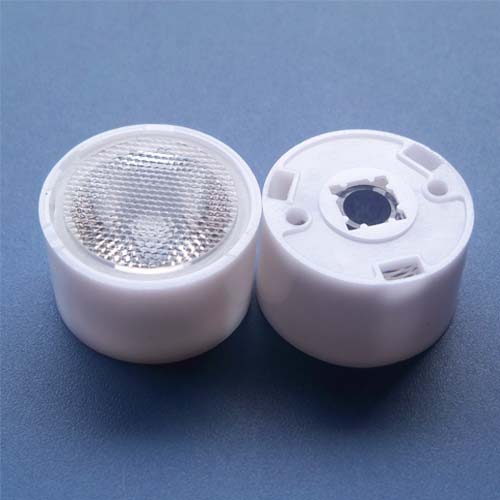

60degree(FWHM) Diameter 21.5mm Led lens for CREE XML|Seoul MJT 4040|Federal 5050(HX-CA20-60L)

• Model:HX-CA20-60L
• Dimensions：Φ21.5mm H12.7mm
• Transmittance：93%
• For LED：CREEXML|Federal5050
• FOV：60deg(FWHM)
• PDF：Led Lenses-HX-CA20-60L.pdf
• PDF link：Download
• Release Date:2016-03-23
• Visits:

Product Description

Part No.	HX-CA20-60L
Size	￠ 21.5 x H 12.7 mm (with holder)
Materials	Lens：PMMA Holder:PC
Transmittance	93%
Surface Treatment	Beads surface
Beam Angle	60 degree
Holder Color	White; Black
For LEDs	CREE XM-L ; Luxeon 5050; Seoul A5,MJT4040,5050 ; Edison 5050 ; Prolight 5050.
Fixing Method	Glue (Optional); Tape (Optional)
RoHS/SGS-Compliant	Yes
Purchase	info@opticsledlens.com
Technical Information
