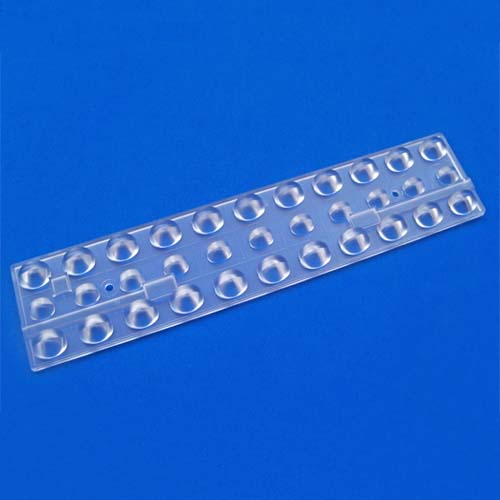

33in1 Asymmetric 23degree Linear light LED lens for OSRAM CP7P|CREE XP|Luxeon T|LG5630,6030 LEDs(HX-3x11ASY-P25)

Product Description

Model: HX-3x11ASY-P25
Dimensions:
Lens: L285 W61 H12.1mm
Cone holder: N/A
Cylinder holder: N/A
Materials:
Lens: Optical Grade PMMA
Holder:N/A
Assembly Dimensions:
Lens with cone holder: N/A
Lens with cylinder holder: N/A
Surface Treatment: Matte(Frosted) surface
Beam Angle: Asymmetric 23(±3)degree
For Led: CREE XP-E,XP-G/G2,XP-L, XH-B/G;
OSRAM Duris S2,S5,P5,E5;
Seoul Z5P,Z5M;
Luxeon 3535 2D,3030 2D,XR-3535L;Federal 3535;
LG 3535,5630,6030; Samsung 3535;
NF2x757D/G;
5630,5730,6030,7030 LEDs ;
Certification: SGS   RoHs

Features:
High efficiency
Available in 1 beam Patterns
Optimized for uniform effects
Lens with holder
Typical applications:
Stage lighting
Street lights
Decorative light
Architectural lighting
Down light
Underwater light
Flashlight
