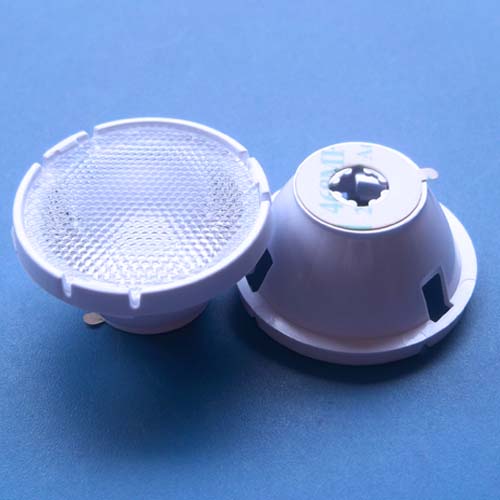

40degree Diameter 32.5mm Led lens for CREE XML,XHP50|Seoul MJT 4040|Federal 5050(HX-HCV-40L)

• Model:HX-HCV-40L
• Dimensions：Φ32.5mm H16.15mm
• Transmittance：93%
• For LED：CREEXML|Federal5050
• FOV：40deg(FWHM)
• PDF：Led Lenses-HX-SERIES-LENS.pdf
• PDF link：Download
• Release Date:2016-10-19
• Visits:

Product Description

Part No.	HX-HCV-40L
Size	￠ 32.45 x H 16.15 mm (with holder)
Materials	Lens：PMMA Holder:PC
Transmittance	93%
Surface Treatment	Beads surface
Beam Angle	40 degree（FWHM)
Holder Color	White; Black
For LEDs	CREE XM-L,XML_EZW,XML_HVW,XHP50; Seoul MJT4040|5050 ; Federal 5050; LG 5050, Samsung 5050; Nichia 183A; ;
Fixing Method	Glue (Optional); Tape (Optional)
RoHS/SGS-Compliant	Yes
Purchase	info@opticsledlens.com
Technical Information
