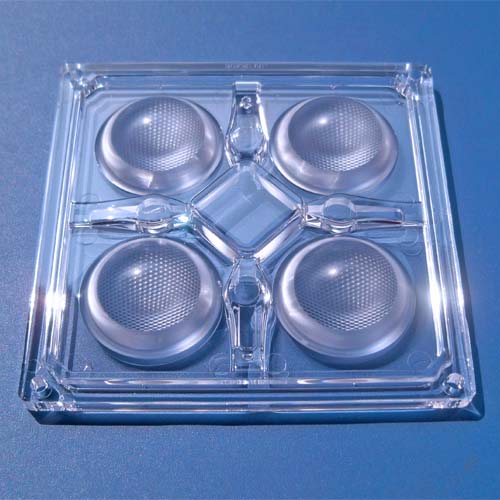

60degree 4in1 Highbay/Lowbay lighting LED lens for OSRAM P10-CREE XHP70-Luxeon M LEDs(HX-F90D-60L)

• Model:HX-F90D-60L
• Dimensions：L90*W90*H9.33mm
• Transmittance：93%
• For LED：CREEXHP70|7070
• FOV：60 deg
• PDF：Led Lenses-HX-SERIES-LENS.pdf
• PDF link：Download
• Release Date:2017-03-21
• Visits:

Product Description

Part No.	HX-F90D-60L
Size	L90.0 W90.0 H9.33mm
Materials	Lens：PMMA Holder: Without
Transmittance	93%
Surface Treatment	Beads surface
Beam Angle	60 degree（FWHM)
Holder Color	Without
For LEDs	CREE XM-L,XML_EZW,XML_HVW,XHP50,XHP70; CREE MTG,MKR,MCE ; Luxeon M ; OSRAM Duris P10;Ostar S2W RGBW ; Seoul MJT5050,Acrich A7; 5050,7070 LEDs ;
Fixing Method	Glue (Optional); Tape (Optional)
RoHS/SGS-Compliant	Yes
Purchase	info@opticsledlens.com
Technical Information
