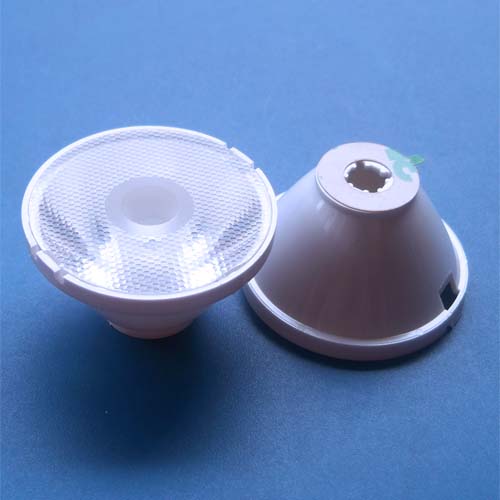

15degree diameter 37.0mm 5050 RGBW Led lens for CREE XML-HI|XHP50 LEDs(HX-37H-15L)

• Model:HX-37H-15L
• Dimensions：Φ37.0 H19.0mm
• Transmittance：93%
• For LED：XHP50.2
• FOV：15 deg
• PDF：Led Lenses-HX-SERIES-LENS.pdf
• PDF link：Download
• Release Date:2017-05-03
• Visits:

Product Description

Part No.	HX-37H-15L
Size	￠ 37.0 x H 19.0 mm (with holder)
Materials	Lens：PMMA Holder:PC
Transmittance	93%
Surface Treatment	Beads surface
Beam Angle	15 degree
Holder Color	White; Black
For LEDs	CREE XML-HI,XML2,XHP50,XHP50.2; Seoul MJT4040; Federal 5050; LG 5050, Samsung 5050; 5050, 5050 RGBW ;
Fixing Method	Glue (Optional); Tape (Optional)
RoHS/SGS-Compliant	Yes
Purchase	info@opticsledlens.com
Technical Information
