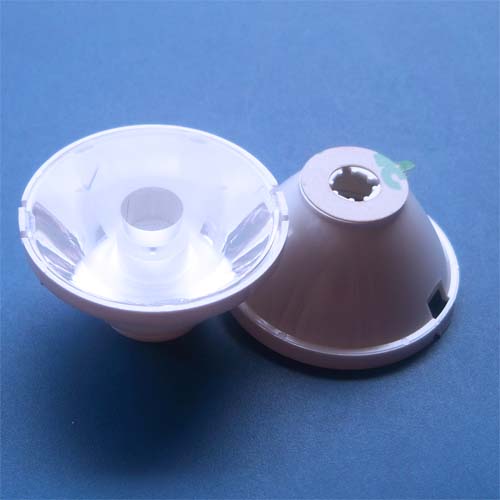

8degree diameter 37.0mm Led lens for CREE XML-HI|XHP50 LEDs(HX-37H-8)

Product Description

Model: HX-37H-8
Materials:
Lens: Optical Grade PMMA
Holder: PC
Assembly Dimensions:
Lens with cone holder:Φ37.0mm H19.0mm
Surface Treatment: Polishing(Clear) surface
Beam Angle: 8deg
For Led: CREE XML-HI,XML2,XHP50,XHP50.2;
Seoul MJT4040;
Federal 5050;
LG 5050, Samsung 5050;
Nichia 183A;
Certification: SGS   RoHs

Features:
High efficiency
Available in 1 beam Patterns
Optimized for uniform effects
Lens with holder
Typical applications:
Stage lighting
Street lights
Decorative light
Architectural lighting
Down light
Underwater light
Flashlight
