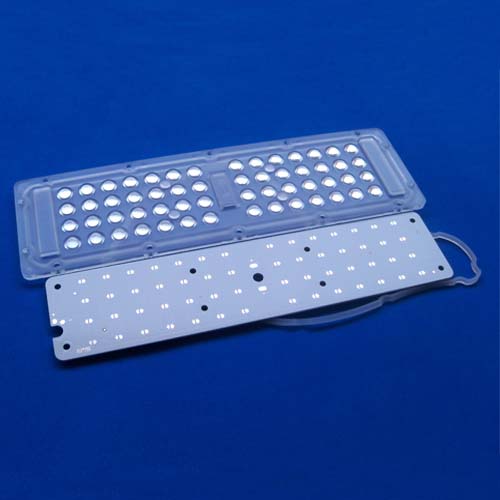

60degree 56in1 high bay lighting LED lens for OSRAM CP7P|CREE XP |Luxeon T LEDs(HX-4x14DT-60)

• Model:HX-4x14DT-60
• Dimensions：L250*W74*H3.6mm
• Transmittance：93%
• For LED：CREEXBD|3030
• FOV：60deg
• PDF：Led Lenses-HX-SERIES-LENS.pdf
• PDF link：Download
• Release Date:2017-07-10
• Visits:

Product Description

Part No.	HX-4x14DT-60
Size	L250 x W74 x H3.6mm
Materials	Lens：PC Holder: without
Transmittance	95%
Surface Treatment	Polishing(clear) surface
Beam Angle	60 degree
Holder Color	without
For LEDs	CREE XP-E,XP-G/G2; CREE XT-E;XPL,XHP35 ; OSRAM SSL80,SSL150,Square; Seoul Z5P,Z5M; Luxeon T,XR/XT,Federal 3535,; LG 3535, Samsung 3535; Nichia 119A,757G; 2525,3030 2D,3030,3535
Fixing Method	Glue (Optional); Tape (Optional)
RoHS/SGS-Compliant	Yes
Purchase	info@opticsledlens.com
Technical Information
