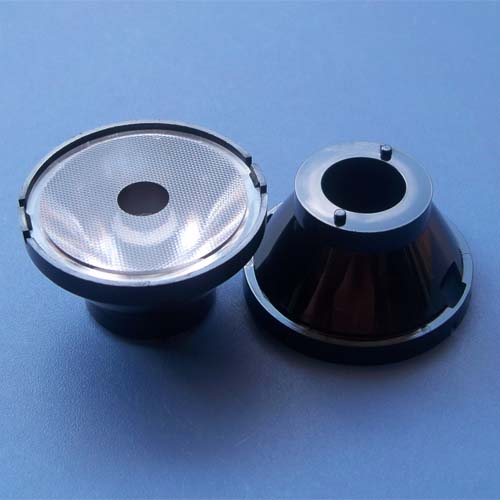

6degree Diameter 31.0mm Stage lighting Led lens for CREE XHP70|MKR-Luxeon M LEDs(HX-AYM-6L)

6degree Diameter 31.0mm Stage lighting Led lens for CREE XHP70|MKR-Luxeon M LEDs(HX-AYM-6L)
  • Model:HX-AYM-6L
  • Dimensions£º¦µ31.0mm H16.2mm
  • Transmittance£º93%
  • For LED£ºCREE XHP70|MKR
  • FOV£º6deg
  • PDF£ºLed Lenses-HX-AYM-6L.pdf
  • PDF link£ºDownload
  • Release Date:2017-09-13
  • Visits:

Product Description

Part No. HX-AYM-6L
Size ¡é 31.0 x H 16.2 mm (with holder)
Materials Lens£ºPMMA
Holder:PC
Transmittance 93%
Surface Treatment Beads surface
Beam Angle 6 degree£¨FWHM) / 13 degree (FA)
Holder Color White; Black
For LEDs CREE XM-L,XML_EZW,XML_HVW,XHP50,XHP70;
CREE MTG,MKR,MCE ;
Luxeon M ;
OSRAM Duris P10;Ostar S2W RGBW ;
Seoul MJT5050,Acrich A7;
5050,7070 LEDs ;
Fixing Method Glue (Optional);
Tape (Optional)
RoHS/SGS-Compliant Yes
