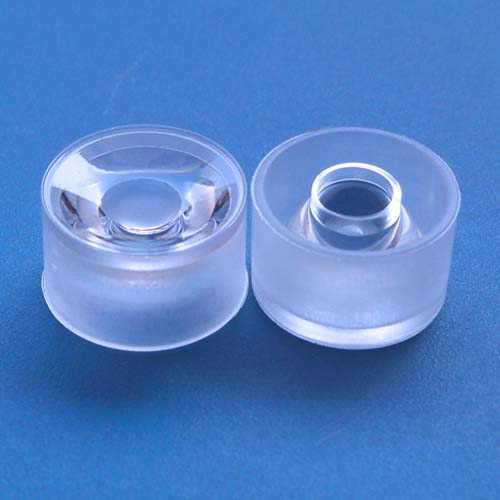

10degree Diameter 13mm waterproof Led lens for CREE XHP35,XPE, XPG| 3535 LEDs(HX-WP13-10)

• Model:HX-WP13-10
• Dimensions：Φ13.0mm H8.0mm
• Transmittance：93%
• For LED：CREEXP|3535
• FOV：10 deg
• PDF：Led Lenses-HX-SERIES-LENS.pdf
• PDF link：Download
• Release Date:2017-10-27
• Visits:

Product Description

Part No.	HX-WP13-10
Size	Φ13.0 x H8.0mm
Materials	Lens：PC Holder:N/A
Transmittance	93%
Surface Treatment	Polishing(Clear) surface
Beam Angle	10 degree
Holder Color	N/A
For LEDs	CREE XHP35,XHP35-HI,XPL2,XPL-HI,XTE-HI; CREE XPE-HI,XP-G3; OSRAM SSL80,SSL150,Square; Seoul Z5P,Z5M; Luxeon T,Federal 3535; LG 3535, Samsung 3535; Nichia 119A;
Fixing Method	Glue (Optional); Tape (Optional)
RoHS/SGS-Compliant	Yes
Purchase	info@opticsledlens.com
Technical Information
