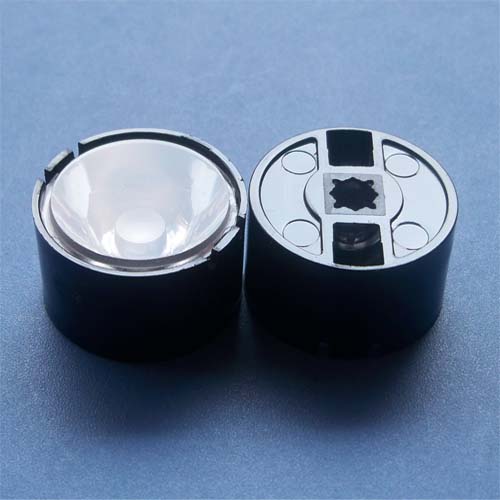

8degree Diameter 21mm LED lens for CREE XPL|XPE|XHP35|Luxeon T|SeoulZ5P LEDs(HX-CSYA-8)

8degree Diameter 21mm LED lens for CREE XPL|XPE|XHP35|Luxeon T|SeoulZ5P LEDs(HX-CSYA-8)
  • Model:HX-CSYA-8
  • Dimensions£º¦µ21.0mm H12.35mm
  • Transmittance£º93%
  • For LED£ºCREE XPL|XHP35
  • FOV£º8 deg
  • PDF£ºLed Lenses-HX-SERIES-LENS.pdf
  • PDF link£ºDownload
  • Release Date:2018-04-09
  • Visits:

Product Description

Part No. HX-CSYA-8
Size ¡é 21.0 x H 12.35 mm (with holder)
Materials Lens£ºPMMA
Holder:PC
Transmittance 93%
Surface Treatment Polishing(Clear) surface
Beam Angle 8 degree£¨FWHM) / 13 degree£¨FA)
Holder Color White; Black
For LEDs CREE XP-E,XP-G/G2;
CREE XT-E;XPL,XHP35 ;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A,757G;
3535 LEDs
Fixing Method Glue (Optional);
Tape (Optional)
RoHS/SGS-Compliant Yes
