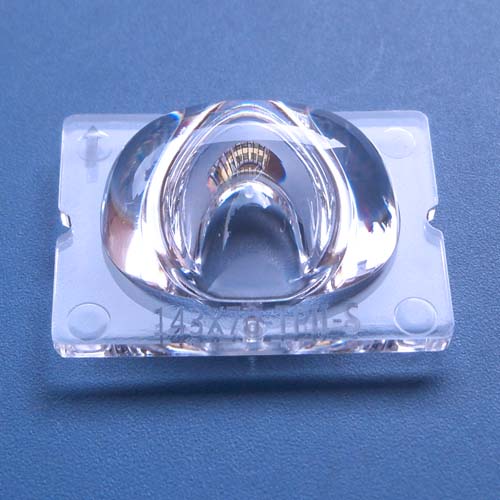

83x145degree asymmetric single street lighting LED lens for CREE MHB|OSRAM P8 |Luxeon XR-XT|Seoul 5050 LEDs(HX-ALD29-14583)

• Model:HX-ALD29-14583
• Dimensions：L29*W25*H8.06mm
• Transmittance：93%
• For LED：OSRAM P8
• FOV：83(±5)*145(±5)deg
• PDF：Led Lenses-HX-SERIES-LENS.pdf
• PDF link：Download
• Release Date:2018-04-18
• Visits:

Product Description

Part No.	HX-ALD29-14583 (asymmetric lens)
Size	L29.0 x W25.0 x H8.06 mm
Materials	Lens：PMMA Holder:N/A
Transmittance	93%
Surface Treatment	Polishing(Clear) surface
Beam Angle	83(±5) x 145(±5) degree
Holder Color	without
For LEDs	CREE MHB ,XTE ,XML ,XPG2 ,XBD ; CREE XHP35-HD ,XHP35-HI ; Osram Oslon Square ,P8 ; Luxeon XR-XT ; Bridgelux 5258 ; Nichia 757G,119C,219C ; Seoul 5050 ; Edison 5050 ,5630 ; 5050,5630 LEDs.
Fixing Method	Glue (Optional); Tape (Optional)
RoHS/SGS-Compliant	Yes
Purchase	info@opticsledlens.com
Technical Information
