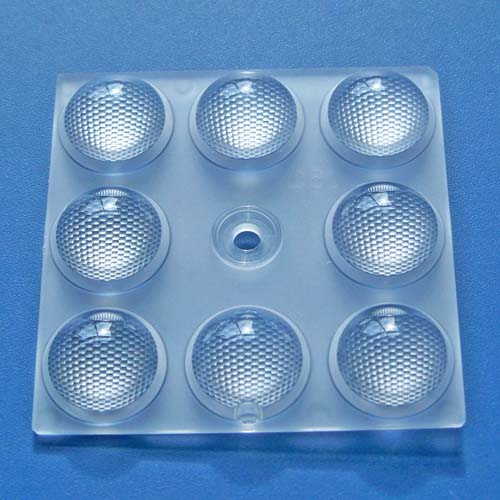

60degree 8in1 highbay lighting LED lens for CREE XML,XHP50| Federal 5050 |5050 LEDs(HX-F2x4-60L-5050)

• Model:HX-F2x4-60L-5050
• Dimensions：L50*W50*H7.5mm
• Transmittance：93%
• For LED：CREE XML|5050
• FOV：60deg
• PDF：Led Lenses-HX-F2x4-60L-5050.pdf
• PDF link：Download
• Release Date:2019-03-30
• Visits:

Product Description

Part No.	HX-F2x4-60L-5050
Size	L50 x W50 x H7.50mm
Materials	Lens：PMMA Holder:N/A
Transmittance	93%
Surface Treatment	Beads surface
Beam Angle	60 degree
Holder Color	N/A
For LEDs	CREE XML/ XHP50/ MX-3 /MX-6; Luxeon 5050; Seoul Acriche MJT4040/ 5050; OSRAM 5050; High power 4040,5050 LEDs;
Fixing Method	Glue (Optional); Tape (Optional)
RoHS/SGS-Compliant	Yes
Purchase	info@opticsledlens.com
Technical Information
