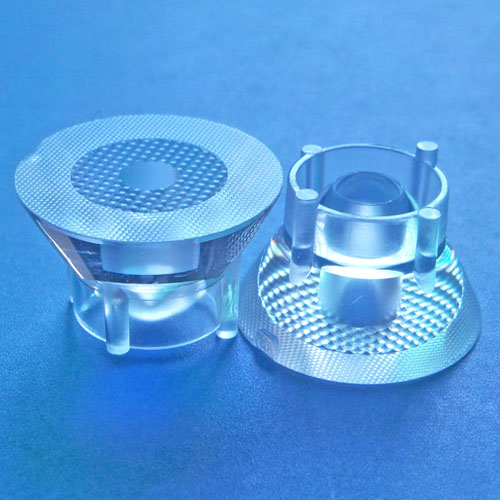

10degree diameter 23mm Led lens for CREE XML RGBW,XHP50|OSRAM OSLON LEDs(HX-HTX-10)

• Model:HX-HTX-10
• Dimensions：Φ22.6 H12.8mm
• Transmittance：93%
• For LED：XML RGBW
• FOV：10deg
• PDF：Led Lenses-HX-SERIES-LENS.pdf
• PDF link：Download
• Release Date:2020-08-10
• Visits: 2476

Product Description

Part No.	HX-HTX-10
Size	￠ 22.6 x H 12.8 mm
Materials	Lens：PMMA Holder: N/A
Transmittance	93%
Surface Treatment	Beads surface
Beam Angle	10 degree（FWHM)
Holder Color	N/A
For LEDs	CREE XHP35,XPE,XBD ; CREE XML, XML-HI,XML2,XHP50,XHP50.2; OSRAM OSLON 3030 ; Seoul Z5P,MJT3030,4040,5050; Federal 3535, 5050; LG 3535,5050, Samsung 3535,5050; 3030 RGBW,3535 RGBW,XML RGBW
Fixing Method	Glue (Optional); Tape (Optional)
RoHS/SGS-Compliant	Yes
Purchase	info@opticsledlens.com
Technical Information
