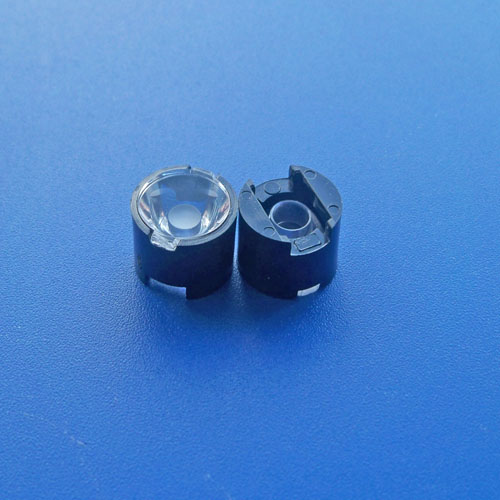

15degree-Diameter 10.8mm HD mini OSRAM Golden Dragon 6070 Infrared LED lens(HX-IR10-15-B)

• Model:HX-IR10-15-B
• Dimensions：Φ10.8mm H8.0mm
• Transmittance：93%
• For LED：OSRAM 6070
• FOV：15 deg
• PDF：Led Lenses-HX-SERIES-LENS.pdf
• PDF link：Download
• Release Date:2022-08-31
• Visits:

Product Description

Part No.	HX-IR10-15-B
Size	￠ 10.8 x H 8.0 mm (with holder)
Materials	Lens：PMMA Holder:PC
Transmittance	93%
Surface Treatment	Polishing surface
Beam Angle	15 degree
Holder Color	White; Black
For LEDs	OSRAM Golden Dragon 6070
Fixing Method	Glue (Optional); Tape (Optional)
RoHS/SGS-Compliant	Yes
Purchase	info@opticsledlens.com
Technical Information
