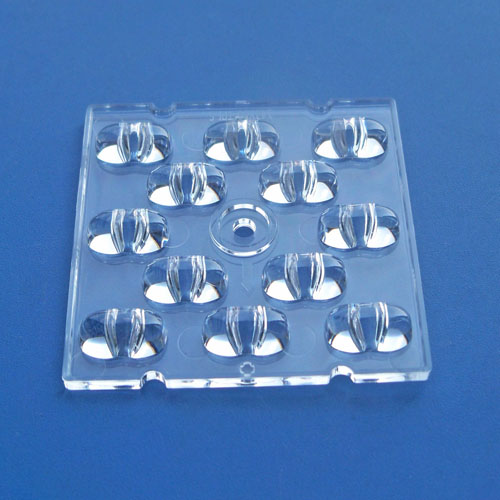

50x143 degree 50x50mm 12in1 TPI asymmetric street lighting LED lens for CREE XQE OSRAM 2835|3030 LEDs(HX-F2x6-14350S)

• Model:HX-F2x6-14350S
• Dimensions：L50*W50*H4.68mm
• Transmittance：93%
• For LED：2835|3030
• FOV：50(±5)*143(±5)deg
• PDF：Led Lenses-HX-SERIES-LENS.pdf
• PDF link：Download
• Release Date:2016-03-26
• Visits:

Product Description

Part No.	HX-F2x6-14350S (asymmetric lens)
Size	L50.00mm W50.00mm H4.68mm
Materials	Lens：PC Holder:N/A
Transmittance	93%
Surface Treatment	Polishing(Clear) surface
Beam Angle	Off-centering Angle : 23(±5) degree ; 50(±5) x 143(±5)deg (FWHM); Type : TPI ;
Holder Color	N/A
For LEDs	CREE XQE ,XP,XHP35; Luxeon TX,T; Federal 3535; OSRAM 2835, 3030 Seoul MJT3030 High power 1616,2525,2835,3030 LEDs;
Fixing Method	Glue (Optional); Tape (Optional)
RoHS/SGS-Compliant	Yes
Purchase	info@opticsledlens.com
Technical Information
