Product Name£º10Deg CREE LED lens (HX-CREE-10)

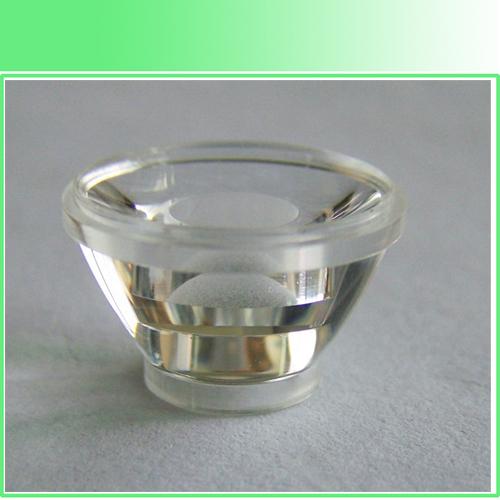

10Deg CREE LED lens (HX-CREE-10)
  • Model:HX-CREE-10
  • Dimensions£º¦µ15.55mm H10.4mm
  • Transmittance£º93%
  • For LED£ºCREE XR
  • FOV£º10 deg
  • PDF£ºLed Lenses-HX-CREE-10.pdf
  • Release Date:2012-05-27
  • Visits:

Product Description

Model: HX-CREE-10
Dimensions:
Lens: ¦µ15.55mm  H10.40mm
Cone holder: N/A
Cylinder holder: N/A
Materials:
Lens: Optical Grade PMMA  PC
Holder:N/A
Assembly Dimensions:
Lens with cone holder: N/A
Lens with cylinder holder: N/A
Surface Treatment: Polishing + Matte surface
Beam Angle: 10 deg
For Led: CREE XR
Certification: SGS   RoHs


Features:
High efficiency
Available in 1 beam Patterns
Optimized for uniform effects
Lens with holder
Typical applications:
Stage lighting
Street lights
Decorative light
Architectural lighting
Down light
Underwater light
Flashlight
