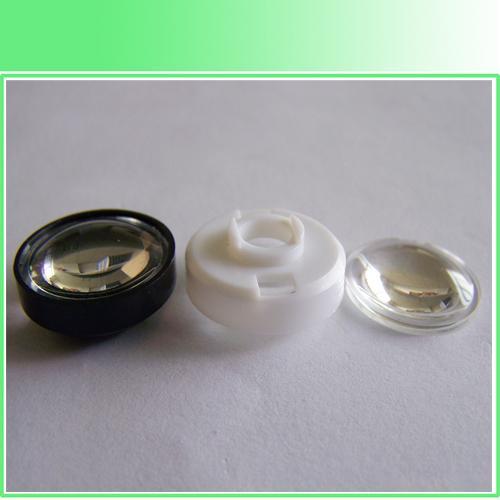

Product Name£º80Deg CREE LED lens(HX-CREE-80)

80Deg CREE LED lens(HX-CREE-80)
  • Model:HX-CREE-80
  • Dimensions£º¦µ19.33mm H4.13mm
  • Transmittance£º93%
  • For LED£ºCREE XR
  • FOV£º80 deg
  • PDF£ºLed Lenses-HX-CREE-80.pdf
  • Release Date:2012-05-27
  • Visits:

Product Description

Model: HX-CREE-80
Dimensions:
Lens: ¦µ19.33mm  H4.13mm
Cone holder: N/A
Cylinder holder: ¦µ20.96mm  H7.00mm
Materials:
Lens: Optical Grade PMMA  PC
Holder:ABS
Assembly Dimensions:
Lens with cone holder: N/A
Lens with cylinder holder: ¦µ20.96mm  H9.10mm
Surface Treatment: Polishing surface
Beam Angle: 80 deg
For Led: CREE XR
Certification: SGS   RoHs


Features:
High efficiency
Available in 1 beam Patterns
Optimized for uniform effects
Lens with holder
Typical applications:
Stage lighting
Street lights
Decorative light
Architectural lighting
Down light
Underwater light
Flashlight
