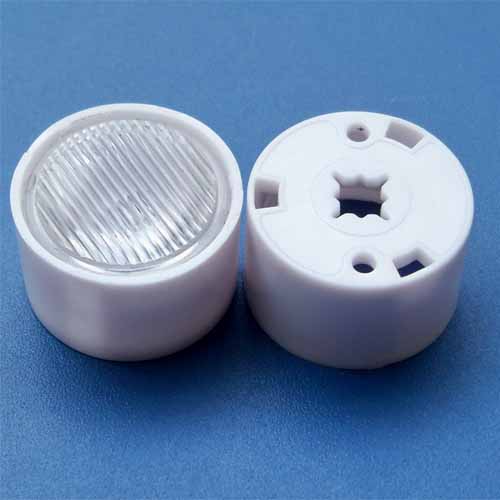

1045 Elliptic spot|15mm|CREE XBD|XQE LED lens

1045 Elliptic spot|15mm|CREE XBD|XQE LED lens
  • Model:HX-15PB-1045
  • Dimensions£º¦µ17.0mm H10.0mm
  • Transmittance£º93%
  • For LED£ºCREE XBD|QE
  • FOV£º10(¡À5)*45(¡À5)deg
  • PDF£ºLed Lenses-HX-15PB-1045.pdf
  • PDF link£ºDownload
  • Release Date:2014-07-31
  • Visits:

Product Description

Model: HX-15PB-1045
Materials:
Lens: Optical Grade PMMA / PC
Holder:ABS
Assembly Dimensions:
Lens with cylinder holder:¦µ17.0mm  H10.0mm
Surface Treatment: Stripes(Ripple Linear) surface
Beam Angle: 10(±5)*45(±5) deg
For Led: CREE XQE/BD
Certification: SGS   RoHs


Features:
High efficiency
Available in 1 beam Patterns
Optimized for uniform effects
Lens with holder
Typical applications:
Stage lighting
Street lights
Decorative light
Architectural lighting
Down light
Underwater light
Flashlight
