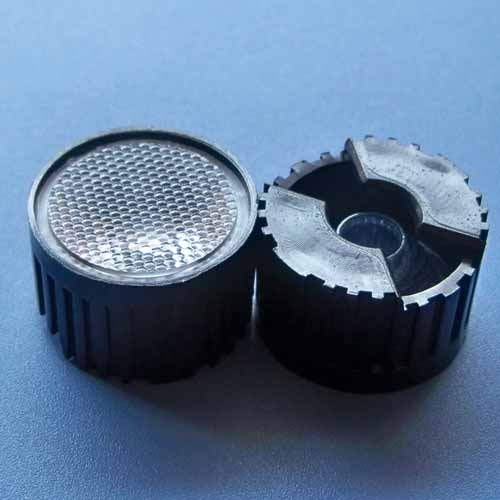

20degree RGB Lens for Luxeon,Seoul,Edixeon Led

20degree RGB Lens for Luxeon,Seoul,Edixeon Led
  • Model:HX-CM-20L
  • Dimensions£º¦µ21.5mm H13.95mm
  • Transmittance£º93&
  • For LED£ºLuxeon|Seoul RGB
  • FOV£º20 deg
  • PDF£ºLed Lenses-HX-SERIES-LENS.pdf
  • PDF link£ºDownload
  • Release Date:2014-11-11
  • Visits:

Product Description

Model: HX-CM-20L
Dimensions:
Lens: ¦µ19.70mm  H10.60mm
striped cylinder holder: ¦µ21.50mm  H13.95mm
bipod striped cylinder holder: N/A
Materials:
Lens: Optical Grade PMMA/PC
Holder: ABS
Assembly Dimensions:
Lens with striped cylinder holder: ¦µ21.50mm H13.95mm
Lens with bipod striped cylinder holder: N/A
Surface Treatment: Beads surface
Beam Angle: 20 deg
For Led: Luxeon(RGB)/ Edixeon(RGB)/ Seoul(RGB)
Certification: SGS   RoHs


Features:
High efficiency
Available in 1 beam Patterns
Optimized for uniform effects
Lens with holder
Typical applications:
Stage lighting
Street lights
Decorative light
Architectural lighting
Down light
Flashlight
