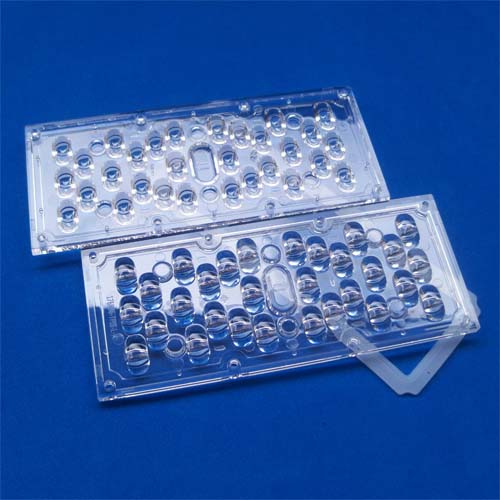

96x176degree 30in1 asymmetric street lighting LED lens for CREE XPE,Luxeon 3030 2D, 3535,3030 LEDs(HX-30H1-17696H)
Model:HX-30H1-17696H
Dimensions£ºL173*W71.4*H5.25mm
Transmittance£º93%
For LED£ºCREEXPE|OSLON
FOV£º96(¡À5)*176(¡À5)deg
PDF£º
Led Lenses-HX-SERIES-LENS.pdf
PDF link£º
Download
Release Date:2017-07-10
Visits:
Product Description
Part No.
HX-30H1-17696H
Size
L173 x W71.4 x H5.25mm
Materials
Lens£ºPC
Holder: without
Transmittance
95%
Surface Treatment
Polishing(clear) surface
Beam Angle
96(±5) x 176(±5) degree (FWHM)
Holder Color
without
For LEDs
CREE XP-E,XP-G/G2;
CREE XT-E;XPL,XHP35 ;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,XR/XT,Federal 3535,;
LG 3535, Samsung 3535;
Nichia 119A,757G;
2525,3030 2D,3030,3535
Fixing Method
Glue (Optional);
Tape (Optional)
RoHS/SGS-Compliant
Yes
