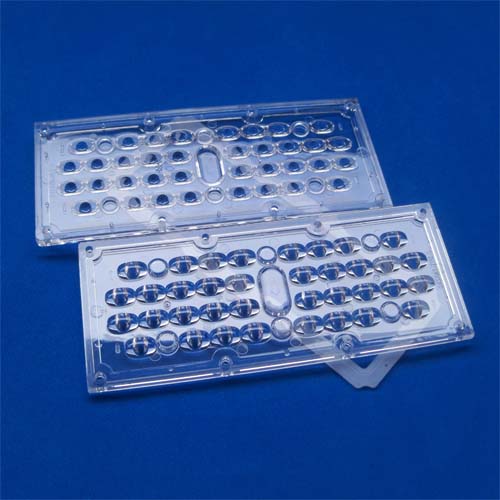

63x145degree 36in1 asymmetric street lighting LED lens for CREE XPE,Luxeon 3030 2D, 3535,3030 LEDs(HX-36H1-14563)

• Model:HX-36H1-14563
• Dimensions：L173*W71.4*H5.25mm
• Transmittance：93%
• For LED：CREEXPE|OSLON
• FOV：63(±5)*145(±5)deg
• PDF：Led Lenses-HX-SERIES-LENS.pdf
• PDF link：Download
• Release Date:2017-07-10
• Visits:

Product Description

Part No.	HX-36H1-14563
Size	L173 x W71.4 x H5.25mm
Materials	Lens：PC Holder: without
Transmittance	95%
Surface Treatment	Polishing(clear) surface
Beam Angle	63(±5) x 145(±5) degree (FWHM)
Holder Color	without
For LEDs	CREE XP-E,XP-G/G2; CREE XT-E;XPL,XHP35 ; OSRAM SSL80,SSL150,Square; Seoul Z5P,Z5M; Luxeon T,XR/XT,Federal 3535,; LG 3535, Samsung 3535; Nichia 119A,757G; 2525,3030 2D,3030,3535
Fixing Method	Glue (Optional); Tape (Optional)
RoHS/SGS-Compliant	Yes
Purchase	info@opticsledlens.com
Technical Information
