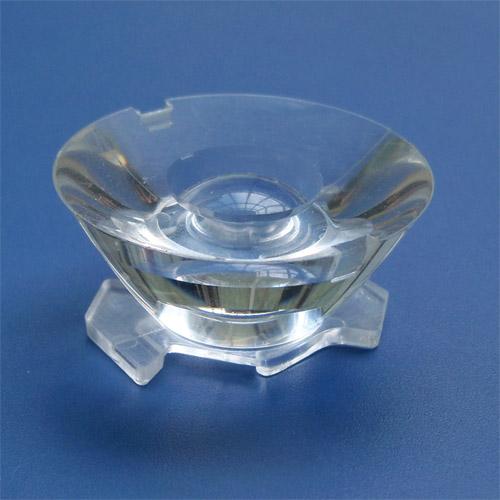

Seoul Acriche A3 20Deg LED lens(HX-CPC-P7)

Seoul Acriche A3 20Deg LED lens(HX-CPC-P7)
  • Model:HX-CPC-P7
  • Dimensions£º¦µ37.0mm H17.8mm
  • Transmittance£º93%
  • For LED£ºSeoul|Bridgelux
  • FOV£º20 deg
  • PDF£ºLed Lenses-HX-CPC-P7.pdf
  • PDF link£ºDownload
  • Release Date:2012-05-27
  • Visits:

Product Description

Model: HX-CPC-P7
Dimensions:
Lens: ¦µ37.00mm  H17.80mm
Cone holder: N/A
Cylinder holder: N/A
Materials:
Lens: Optical Grade PMMA  PC
Holder:N/A
Assembly Dimensions:
Lens with cone holder: N/A
Lens with cylinder holder: N/A
Surface Treatment: Polishing surface
Beam Angle: 20 deg
For Led: Seoul AW3220, Bridgelux, COB
Certification: SGS   RoHs


Features:
High efficiency
Available in 1 beam Patterns
Optimized for uniform effects
Lens with holder
Typical applications:
Stage lighting
Street lights
Decorative light
Architectural lighting
Down light
Underwater light
Flashlight



AX32X1 LED Descriptions:
1.Acriche series is designed for AC source operation and high flux output applications.
2.Acriche is a semi-permanent and environmental friendly semiconductor lighting that can be used in AC without additional device.
3.Acriche's thermal management perform exceeds other power LED solutions.It incorporates state of the art SMD design and Thermal emission material.Acriche is ideal light sources for general illumination applications.
